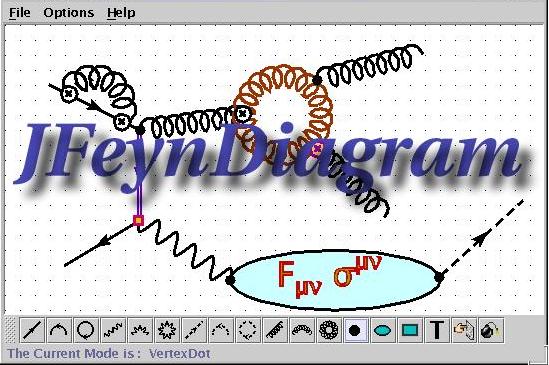

Draws Feynman Diagrams with Java.
It supports color,
control on line widths, double lines, arrows, etc. It also supports some
text with greek letters, superscripts and subscripts using LaTeX syntax.
It has been checked with the IBM jdk 1.3.0 under Linux
If you produce a nice plot with
it, please send it to the author.
*To install the program just copy the file jfeyndiagram.jar
to a directory and
java -jar jfeyndiagram.jar
*Diagrams can be saved as serialized (extension
.fd) or xml (the later
is better because it keeps compatibility between java versions or updates)
One can choose different objects and clicking
on them one can change
For fermion drawing. Options
include: color, double line, arrow, arrowsize.
A 180 degrees fermion arc. Options as above
A fermion loop. Options as above.
Boson. Options include: color, double line, arrow, arrowsize.
A 180 degrees boson arc. Options as above
A boson loop. Options as above.
A photon. Options include fermion options except arrow. In addition one
can control flipping, amplitude and wavelenght.
A 180 degrees photon arc. Options as above
A photon loop: Options as above.
A Gluon: Options as photon except flipping.
A 180 degrees gluon arc. Options as above
A gluon loop. Options as above.
Assorted Vertices. Optinons include:
Size, color line, color fill, line width. Click to open dialog.
Blob: Options as above
Rectangle: Options as above.
Text: Greec, superscript and subscript using LaTeX format. Options include:
Outline (choosing double line). Line color, Fill color, linewidth, size.
Click here and then on the selected object to change its options.
Click here and then on the object to delete an object.
You can download jfeyndiagram.jar here jfeyndiagram.jar
If you have JavaWeb Start install you can run it Run JFeynDiagram using JWS
